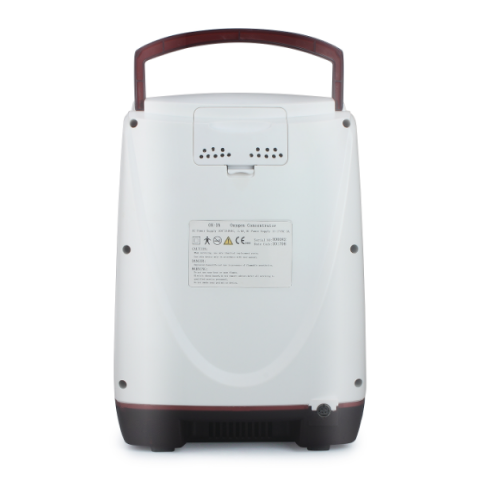

Mercury series-(OX-2A)
Description:

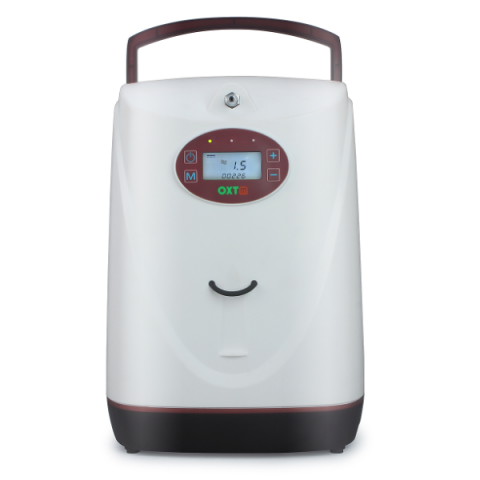

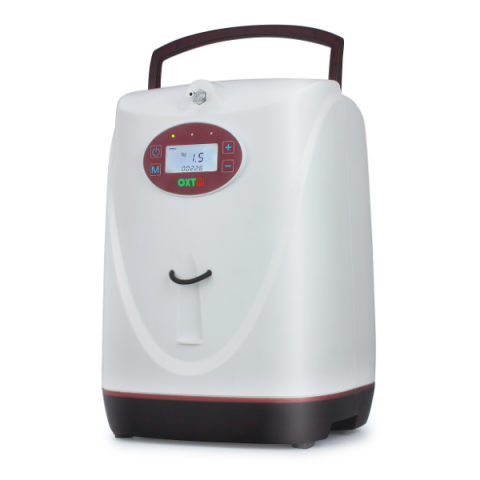

Mercury series
Purity:87%-96% at all sengs and flow rates Dimension (mm):200(L)* 230(W)* 325(H)
Its high-tech construction ensures the material can carry a wide range of weights, protects against moisture and provides sustainable packaging solutions.
![](https://oxtm-02.com/archive/image/2023-11-28_154007.jpg)
![](https://oxtm-02.com/archive/image/13.png)
![](https://oxtm-02.com/archive/image/9.png)
![](https://oxtm-02.com/archive/image/11.png)

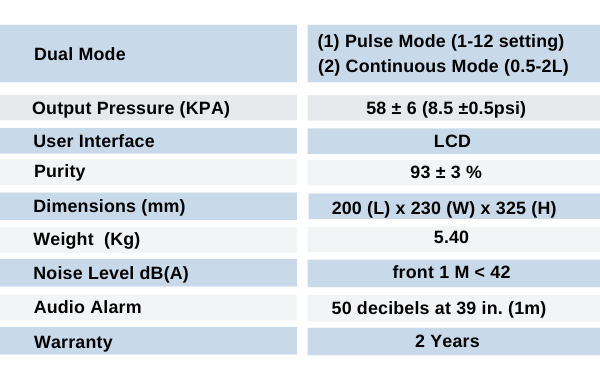

Product Description
Oxygen concentration
|
87%~96% at all settings
|
Flow Setting and Pulse Volumes
|
Pulse mode
1-12 settings (Average of 20 consecutive breaths) Continuous Mode 0.5-2 litters per mins ( 3 minutes running average) Note : Max recommend flow : 2 LPM |
Use Interface
|

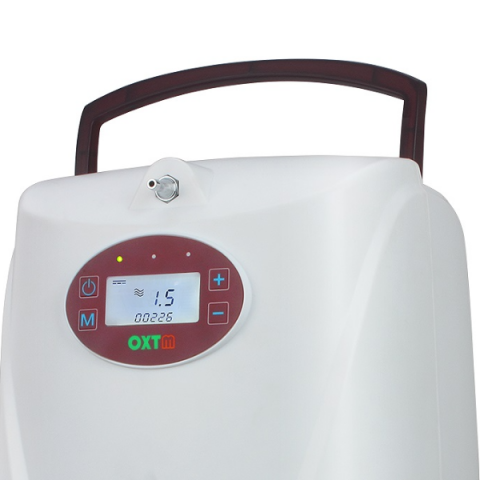

Power switch, Push buttons, back –light liquid crystal display(LCD)
|
Dimensions
|
200(L) X 230(W) 325(H) mm
|
Wight
|
5.4kg
|
Sound Level
|
46 dBA max. at continuous Mode Setting of 2 liter Front 1M
|
Audio Alarm
|
50 decibes (nominal)at 39 in. (1m)
|
Outlet Pressure
|
8.5 psi ± 0.5 psi
|
Continuous Flow / 0.5 L Per Increment
|
||||
LPM
|
0.5
|
1.0
|
1.5
|
2.0
|
O2 Purity
|
87% ~ 96%
|
Pulse Flow based on 20 BPM (±15%)
|
||||||
Pulse Flow
|
Set 1
|
Set 2
|
Set 3
|
Set 4
|
Set 5
|
Set 6
|
Bolus (ml/BPM)
|
6
|
12
|
18
|
24
|
30
|
36
|
O2 Purity
|
87% ~ 96%
|
|||||

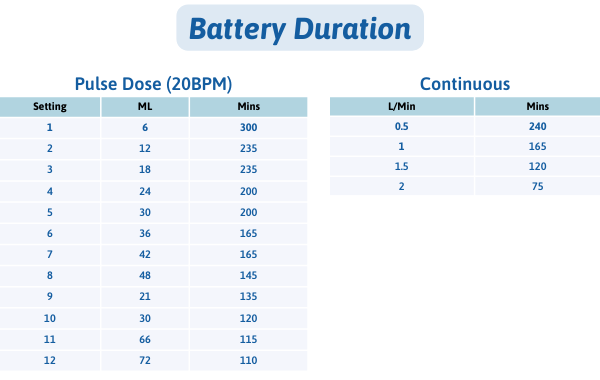

Battery Duration
|
300 min
|
235 min
|
235 min
|
200 min
|
200 min
|
165 min
|
Pulse Flow
|
Set 7
|
Set 8
|
Set 9
|
Set 10
|
Set 11
|
Set 12
|
Bolus (ml/BPM)
|
42
|
48
|
54
|
60
|
66
|
72
|
O2 Purity
|
87% ~ 96%
|
|||||
Battery Duration
|
165 min
|
145 min
|
135 min
|
120 min
|
115 min
|
110 min
|
